Ø50 × 130 mm
12W professional LED track light
1440 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL01A50 →FIVE SERIES · SIXTEEN MODELS
LED Track Light
Choose a product series first, then compare every available diameter, power and optical configuration from left to right.
TL01 PRODUCT LINE

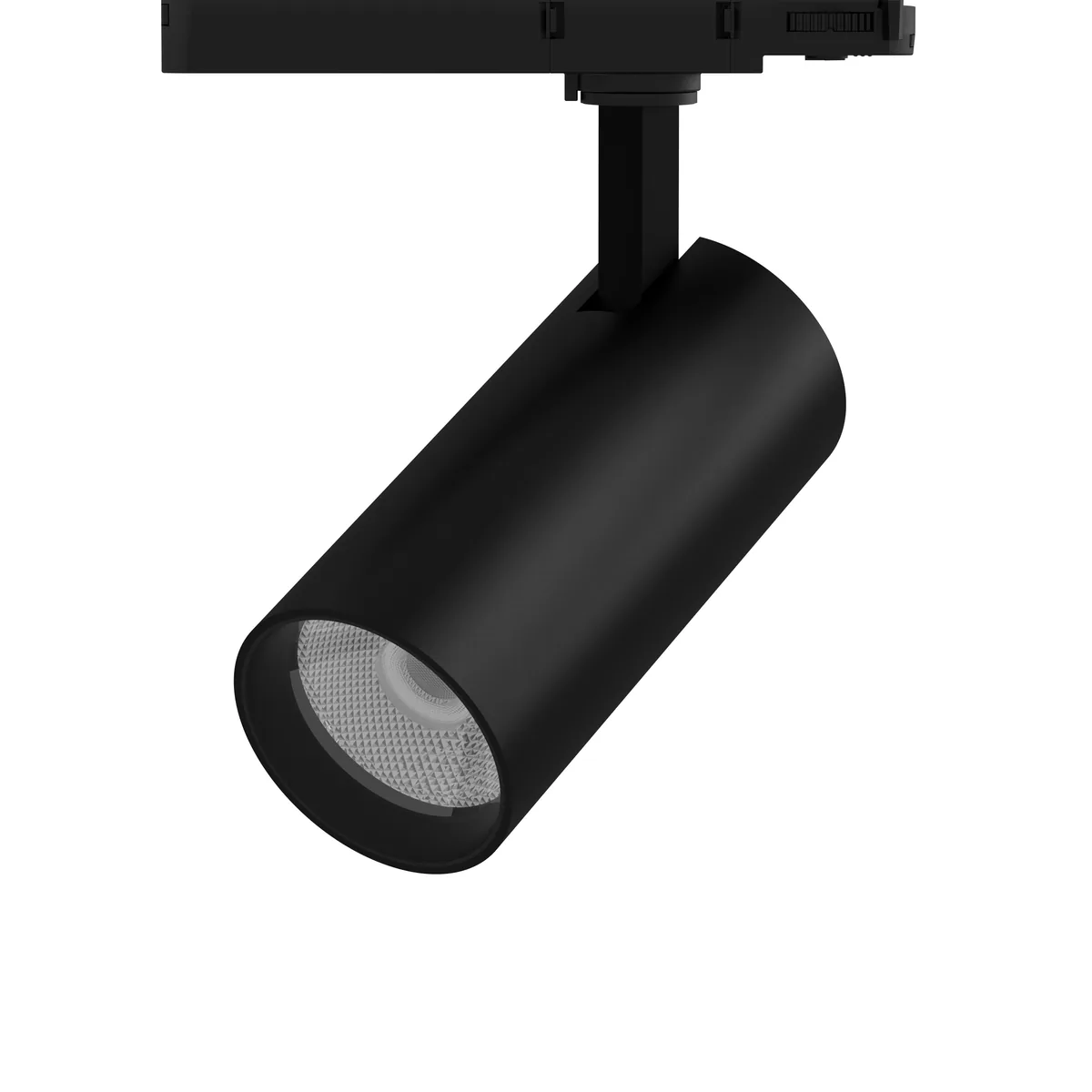

TL01
A coordinated fixed-beam family with five body diameters and outputs from 12W to 40W. Available in 2700K, 3000K and 4000K, CRI90, black or white finish, for three-circuit track mounting. Power range: 12W–40W.

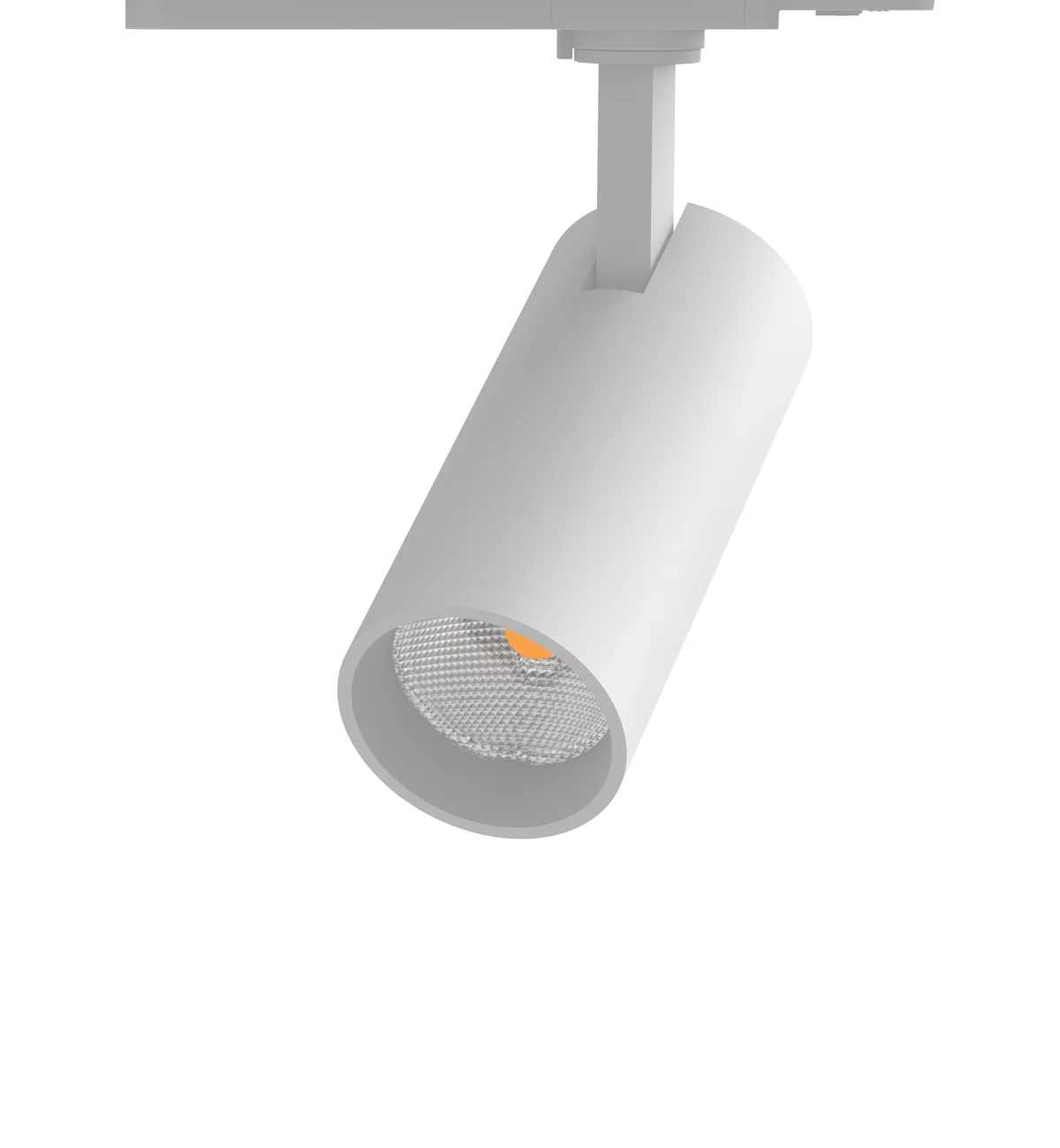

Ø60 × 140 mm
20W professional LED track light
2400 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL01A60 →

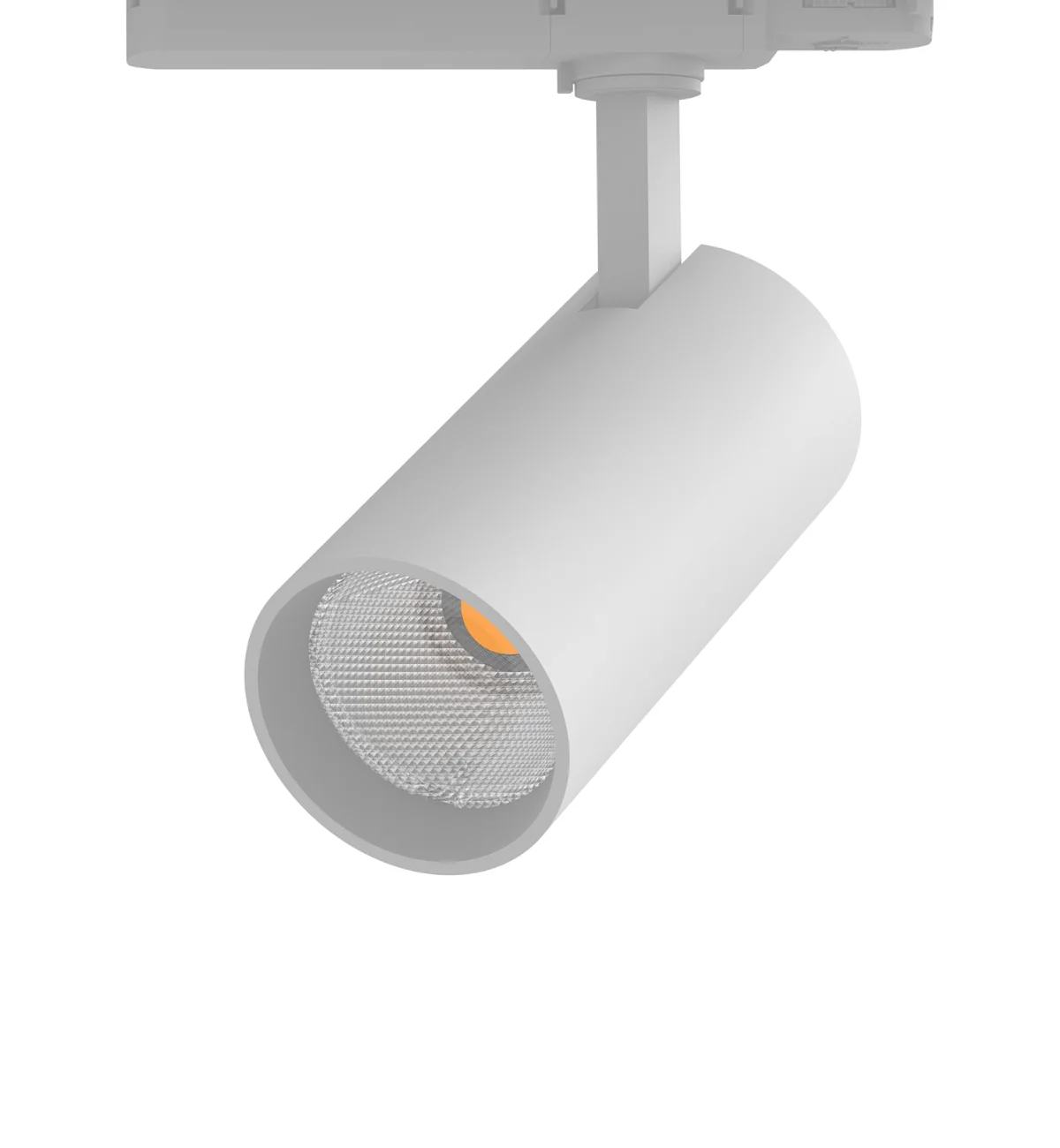

Ø70 × 150 mm
25W professional LED track light
3000 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL01A70 →

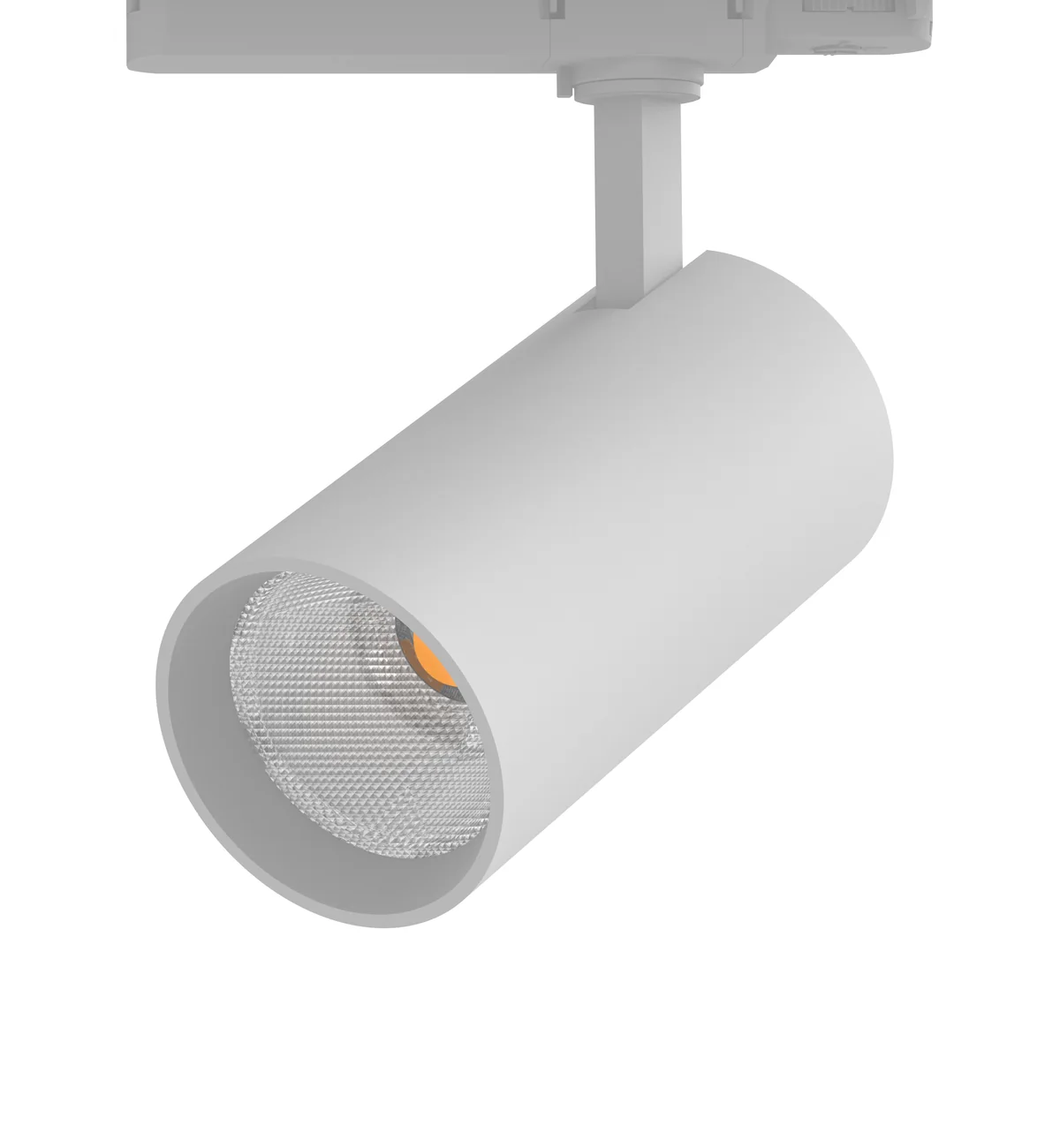

Ø80 × 160 mm
30W professional LED track light
3600 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL01A80 →

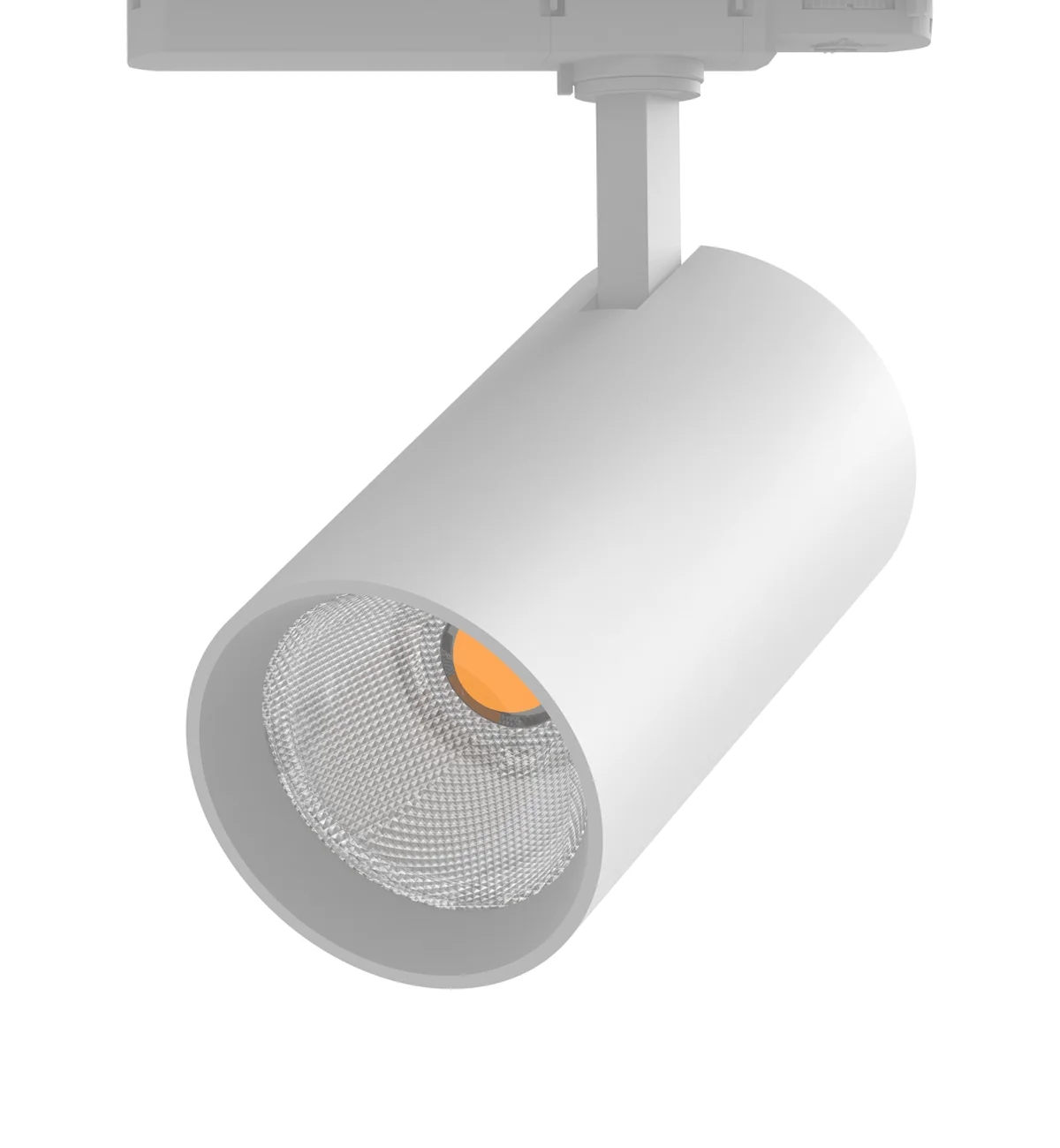

Ø90 × 160 mm
40W professional LED track light
4800 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL01A90 →TL02 PRODUCT LINE

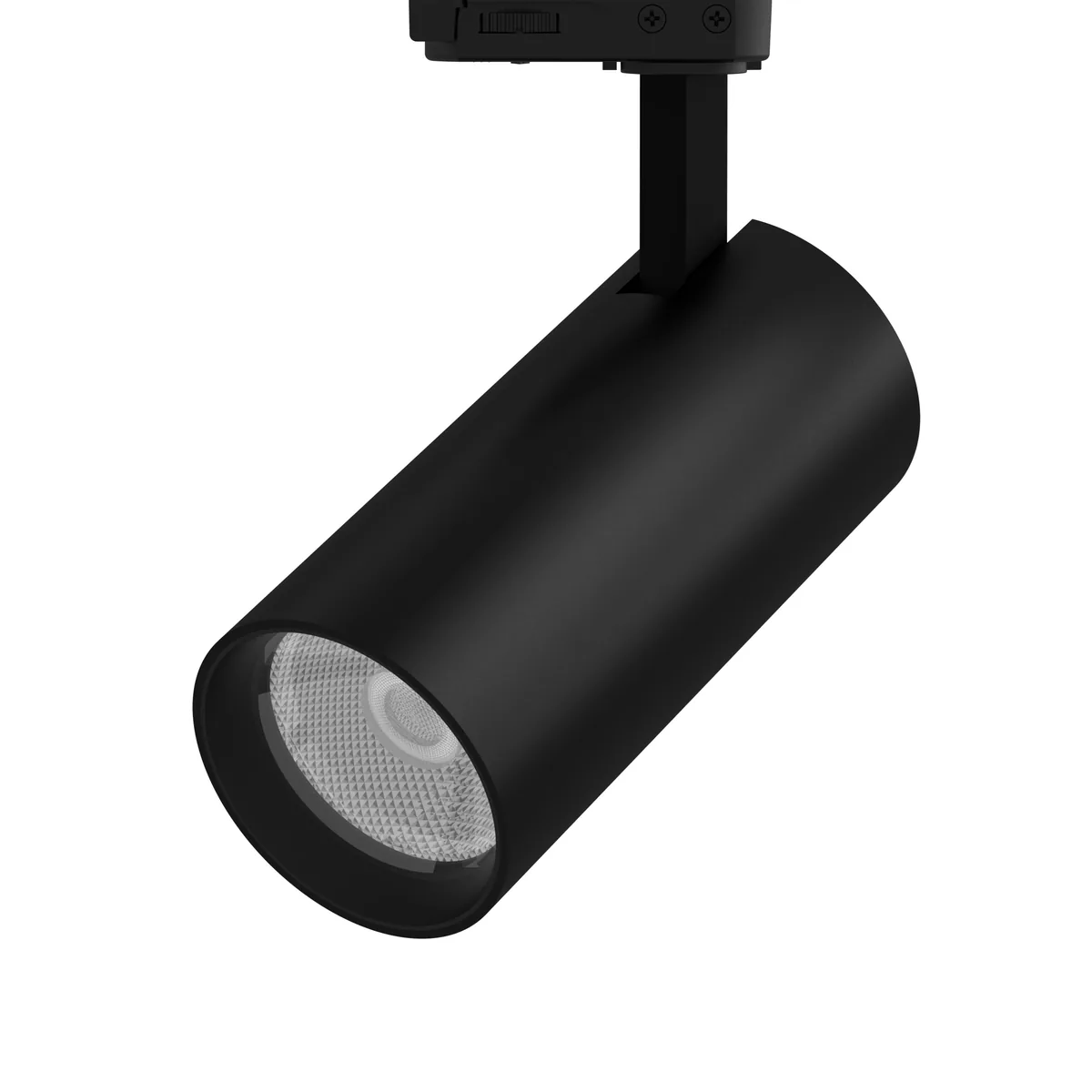

TL02
A clean cylindrical fixed-beam family in three sizes for retail, showroom and commercial accent lighting. Available in 2700K, 3000K and 4000K, CRI90, black or white finish, for three-circuit track mounting. Power range: 15W–35W.

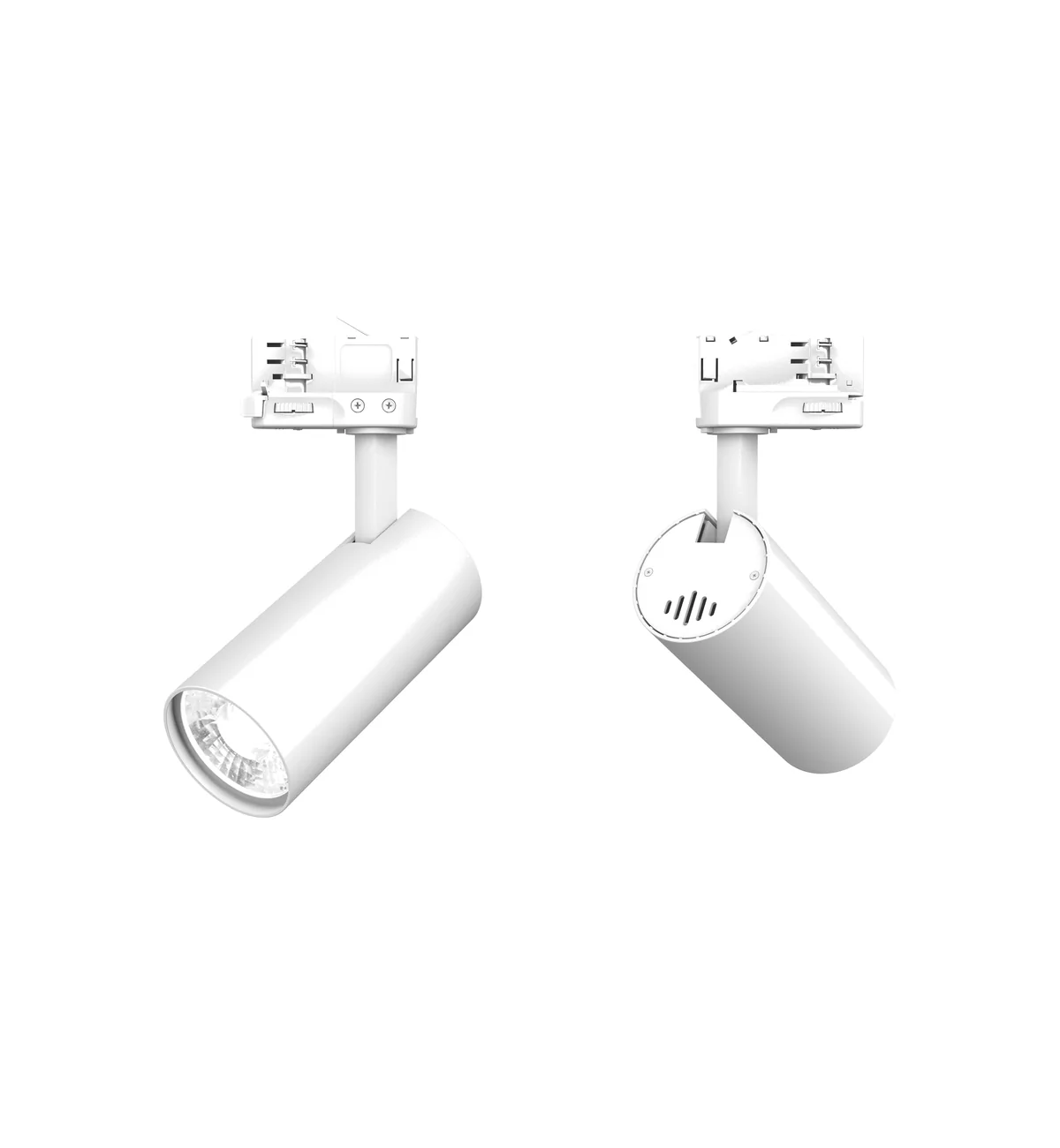

Ø65 × 140 mm
15W professional LED track light
1800 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL02A65 →

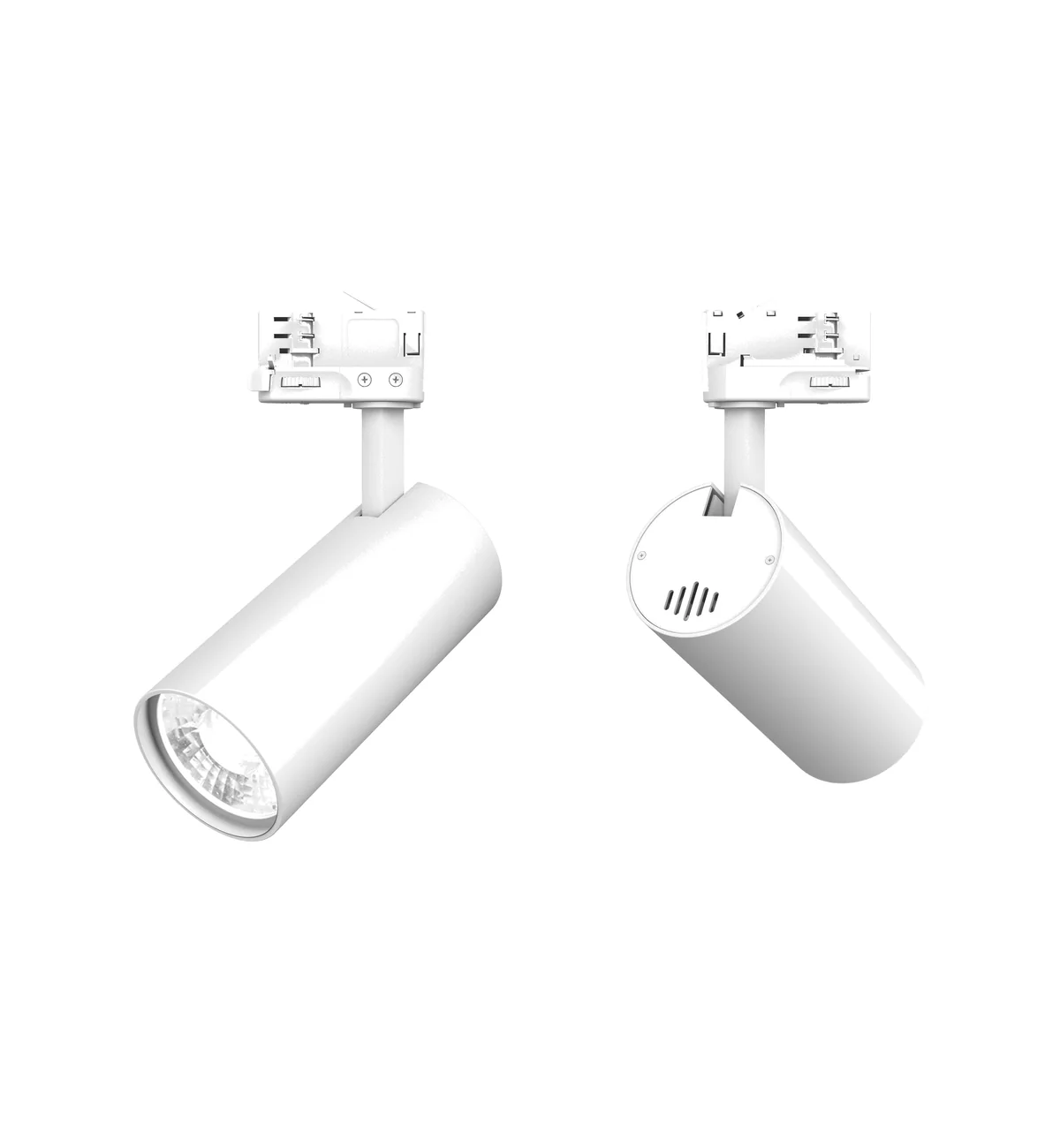

Ø75 × 160 mm
25W professional LED track light
3000 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL02A75 →

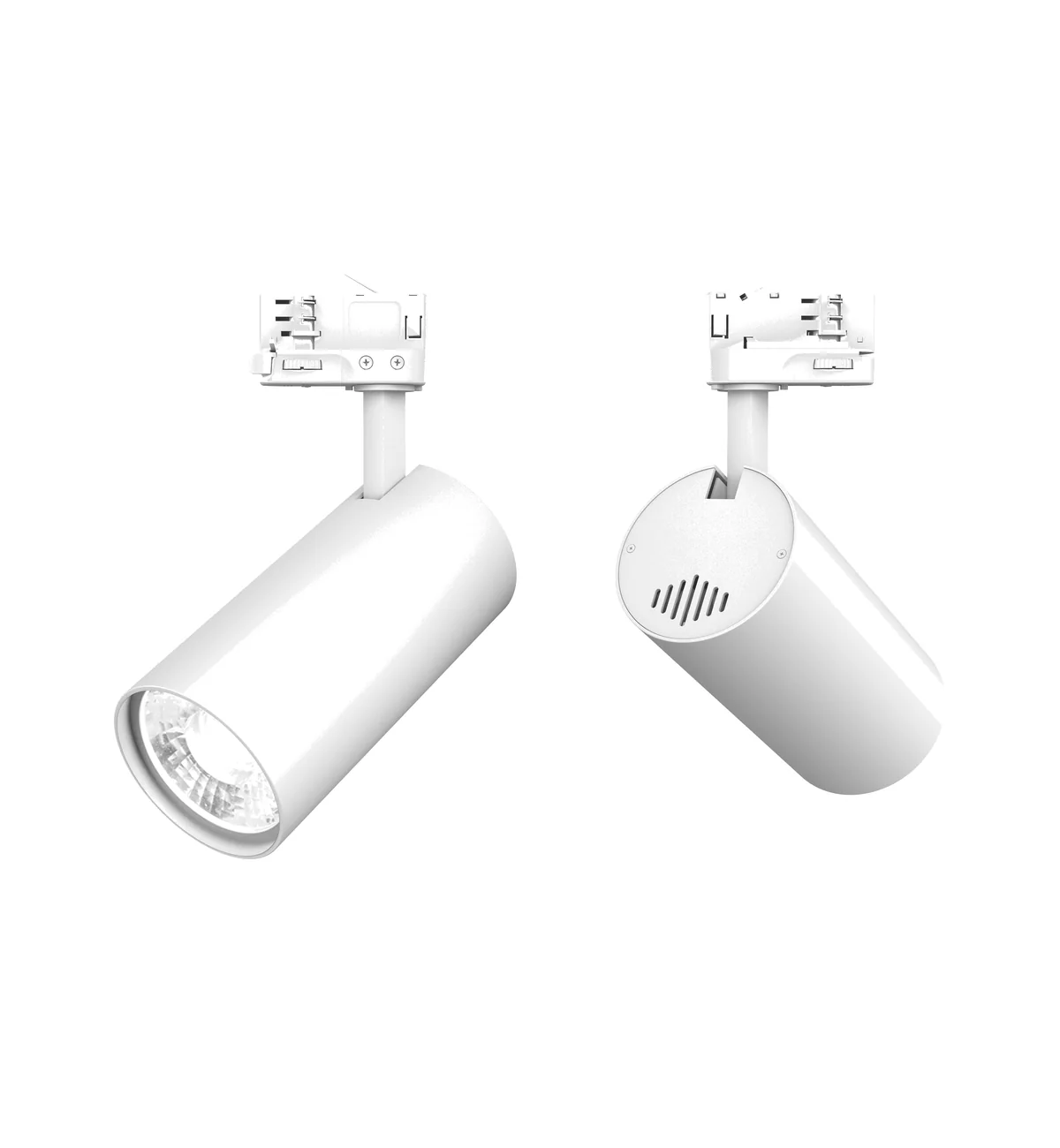

Ø85 × 170 mm
35W professional LED track light
4200 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL02A85 →TL03 PRODUCT LINE

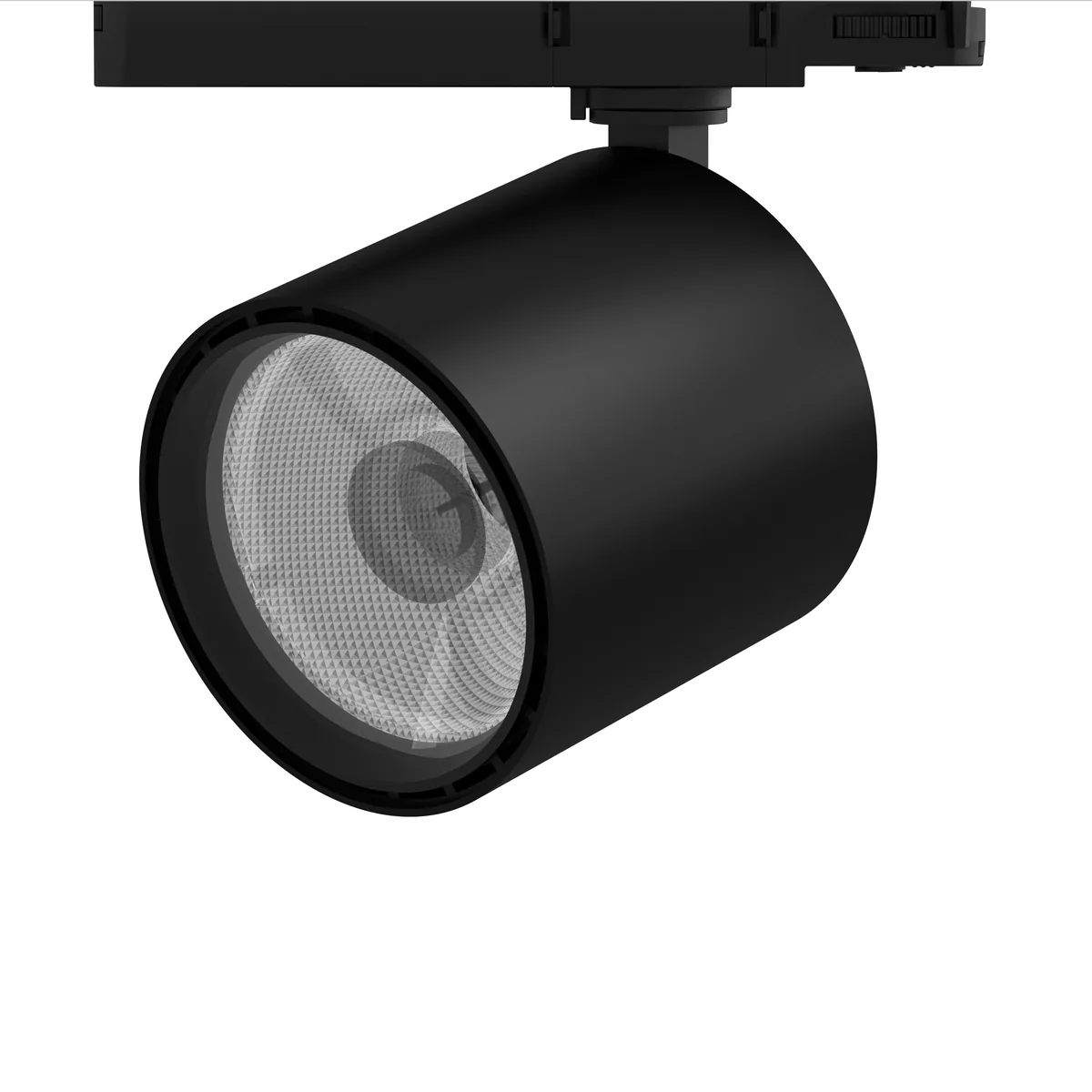

TL03
A compact short-body family with high-lumen packages in three diameters. Available in 2700K, 3000K and 4000K, CRI90, black or white finish, for three-circuit track mounting. Power range: 20W–40W.

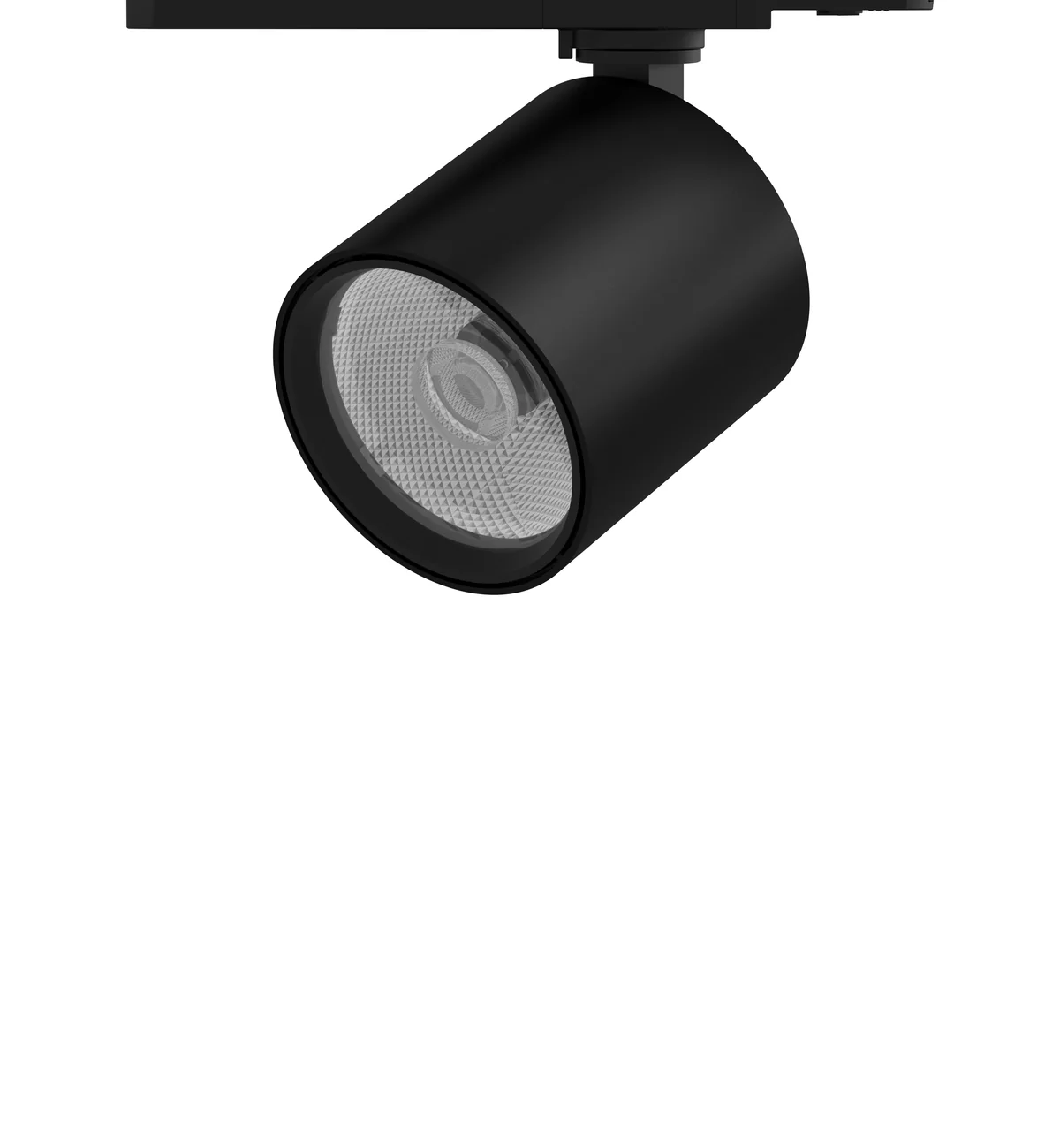

Ø80 × 80 mm
20W professional LED track light
2700 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL03B80 →

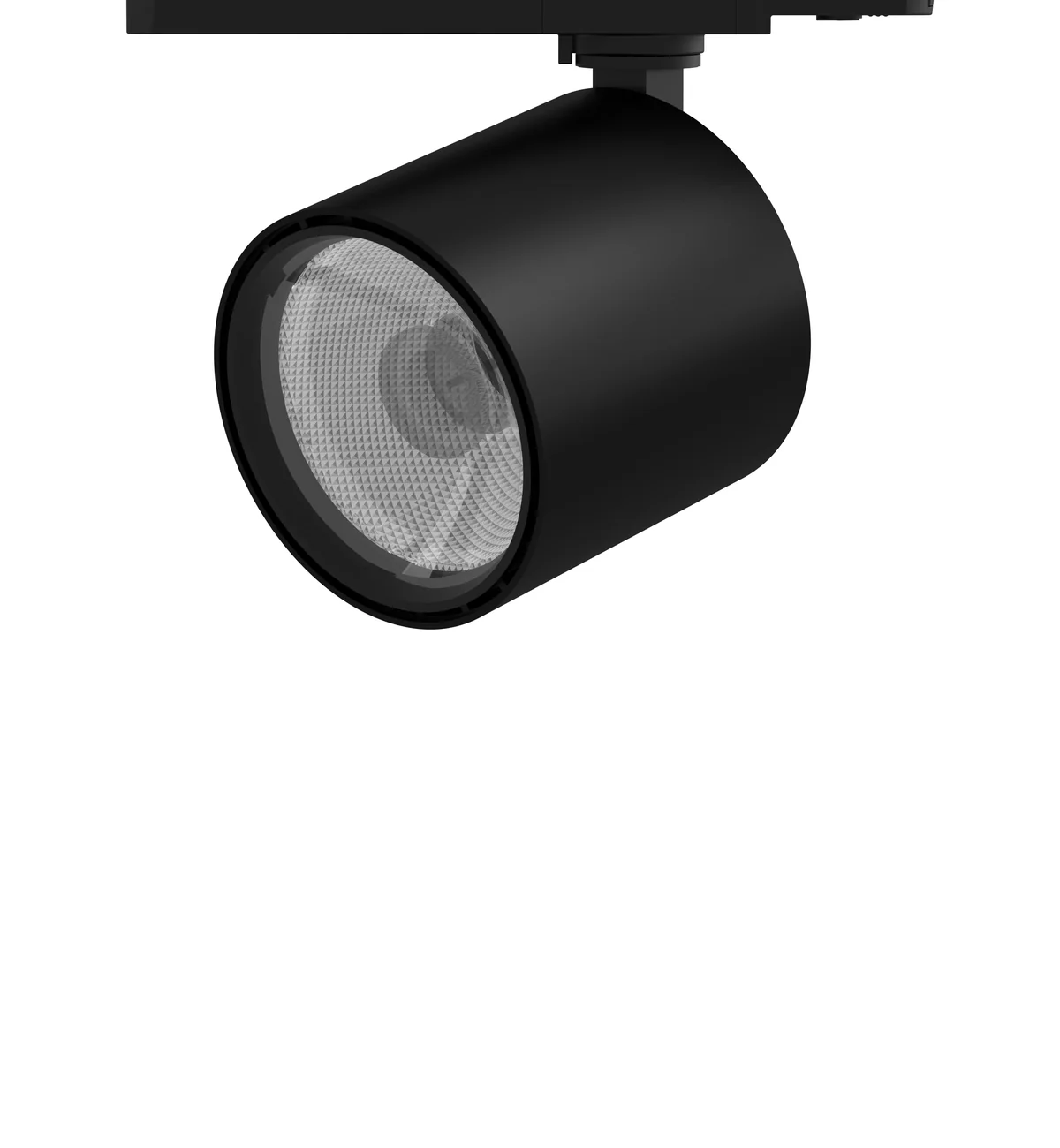

Ø90 × 95 mm
30W professional LED track light
4050 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL03B90 →

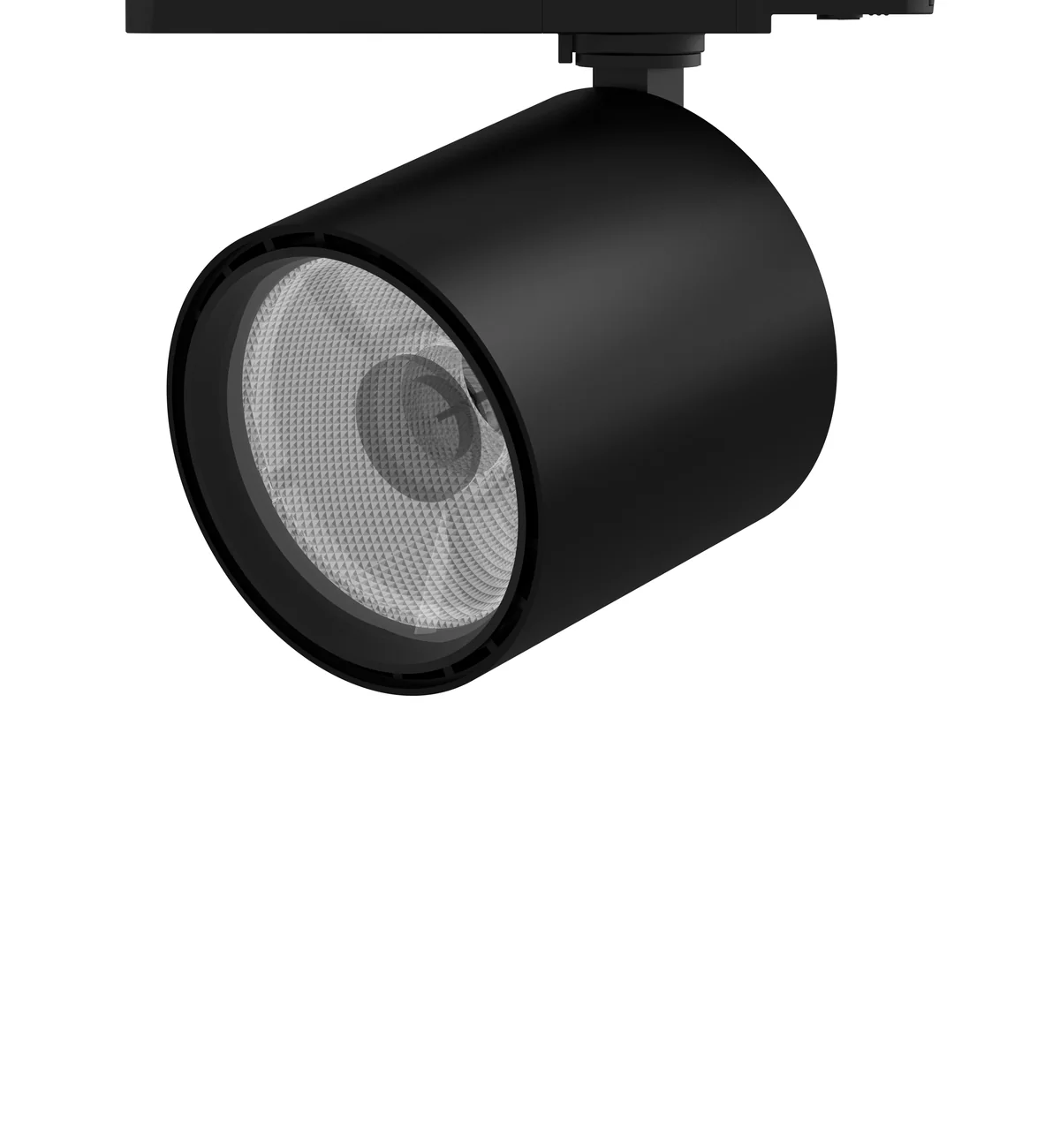

Ø100 × 95 mm
40W professional LED track light
5400 lm system output24° / 36°CRI90 · IP20 · Indoor
View TL03B100 →TL04 PRODUCT LINE

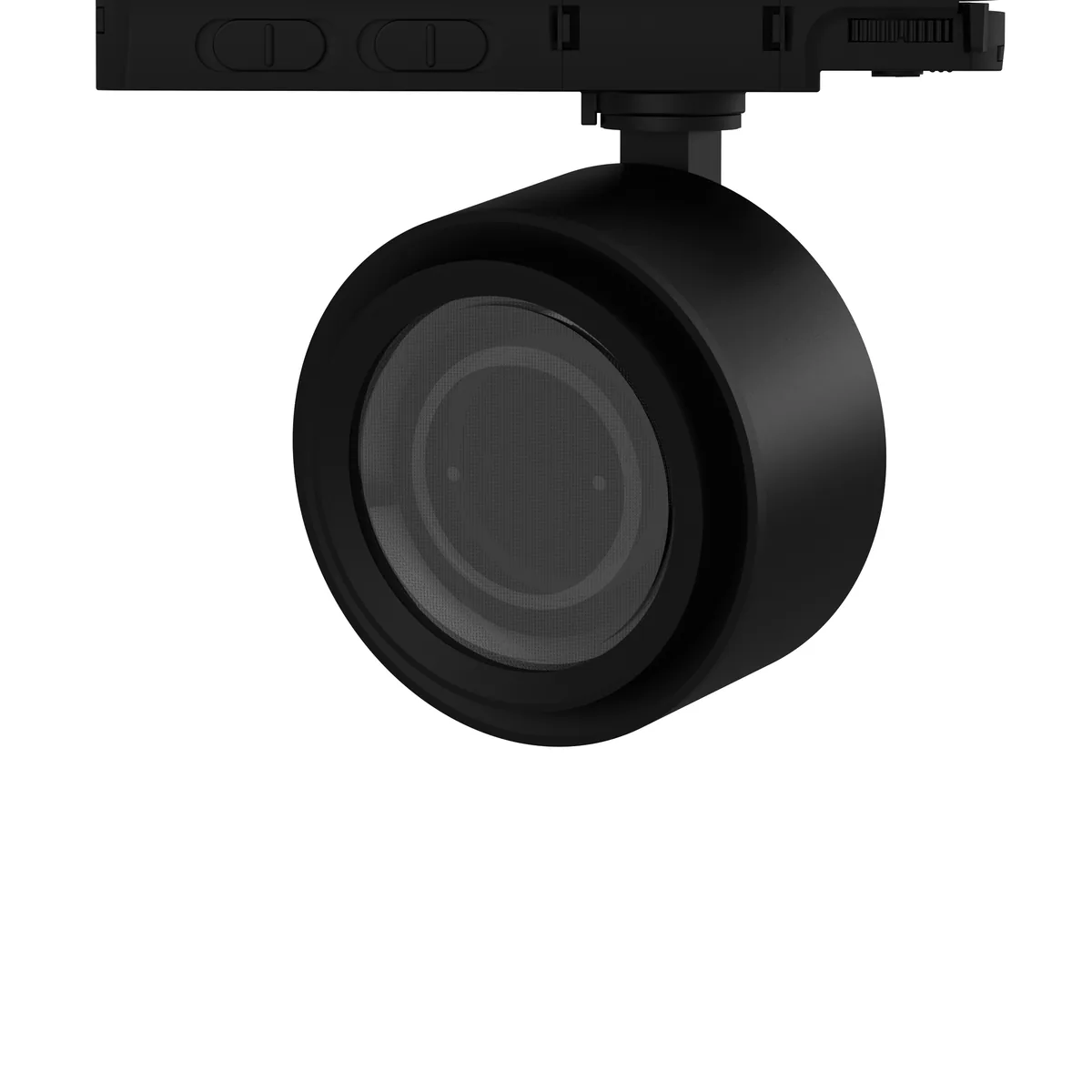

TL04
A compact zoomable family with 20°–55° optical adjustment for changing displays and precise aiming. Available in 2700K, 3000K and 4000K, CRI90, black or white finish, for three-circuit track mounting. Power range: 15W–25W.
Ø80 × 46 mm
15W professional LED track light
1950 lm system output20°–55° zoomCRI90 · IP20 · Indoor
View TL04A80 →

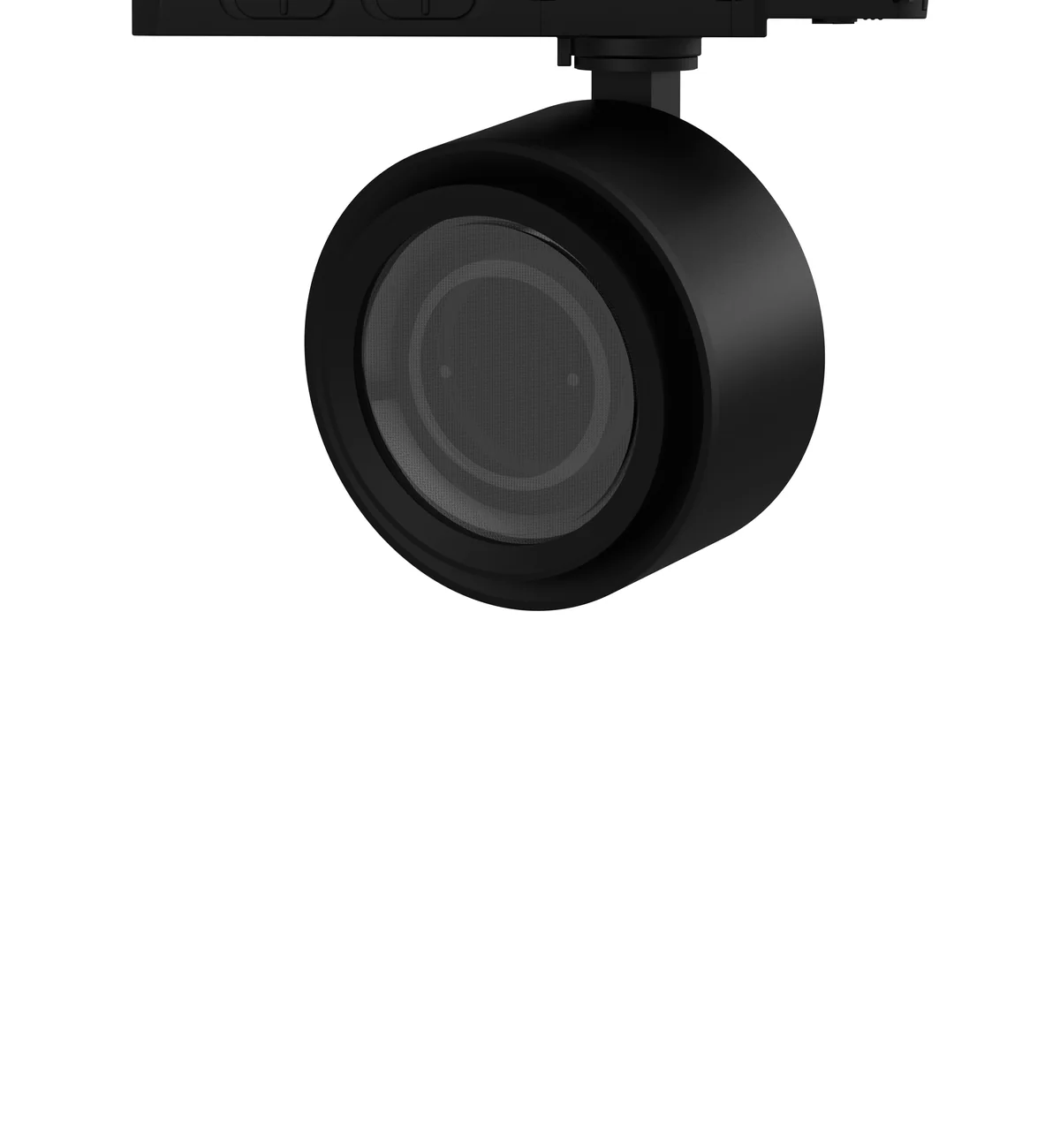

Ø100 × 47 mm
25W professional LED track light
3250 lm system output20°–55° zoomCRI90 · IP20 · Indoor
View TL04A100 →TL05 PRODUCT LINE

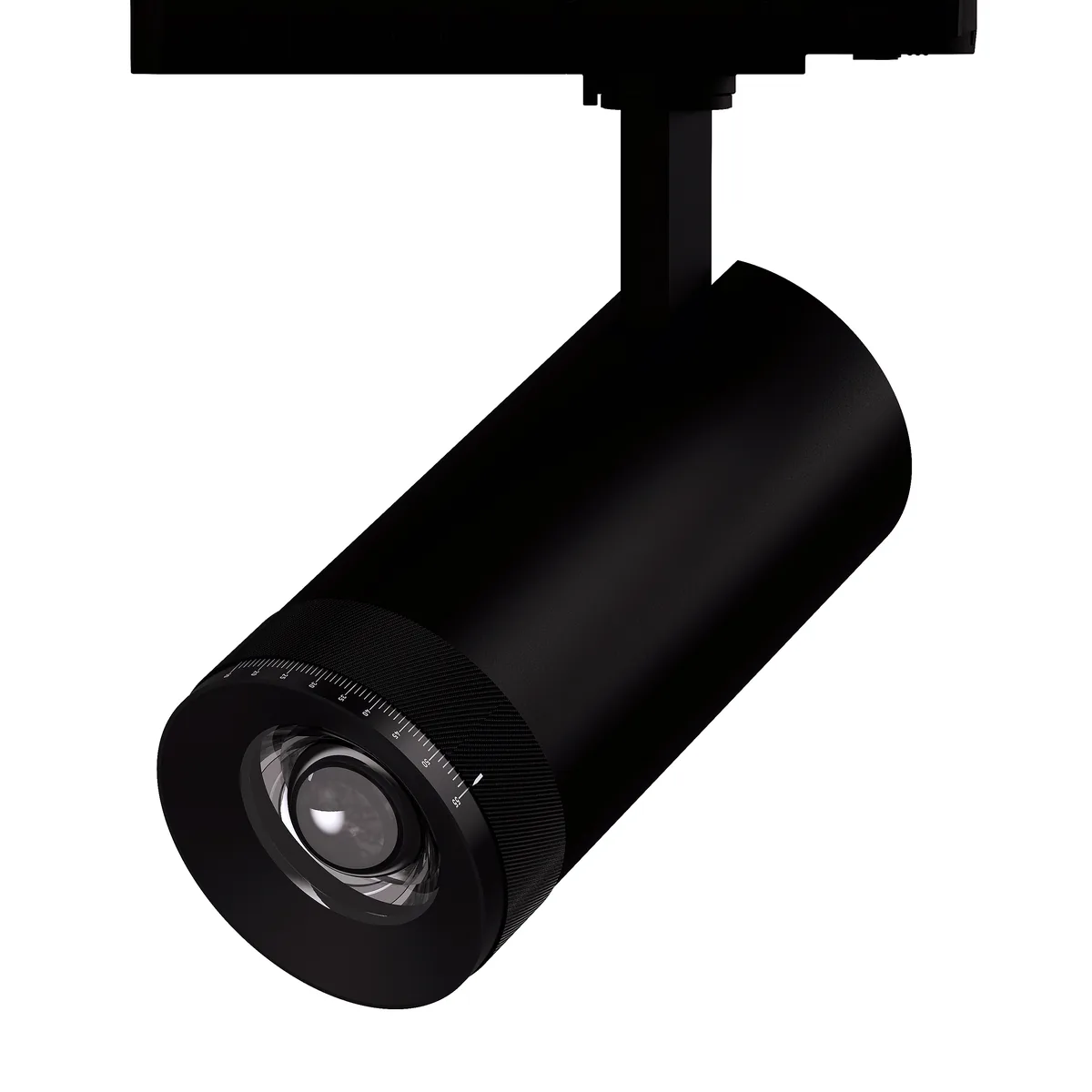

TL05
A slim zoomable family with 15°–55° optical adjustment across three output sizes. Available in 2700K, 3000K and 4000K, CRI90, black or white finish, for three-circuit track mounting. Power range: 15W–35W.

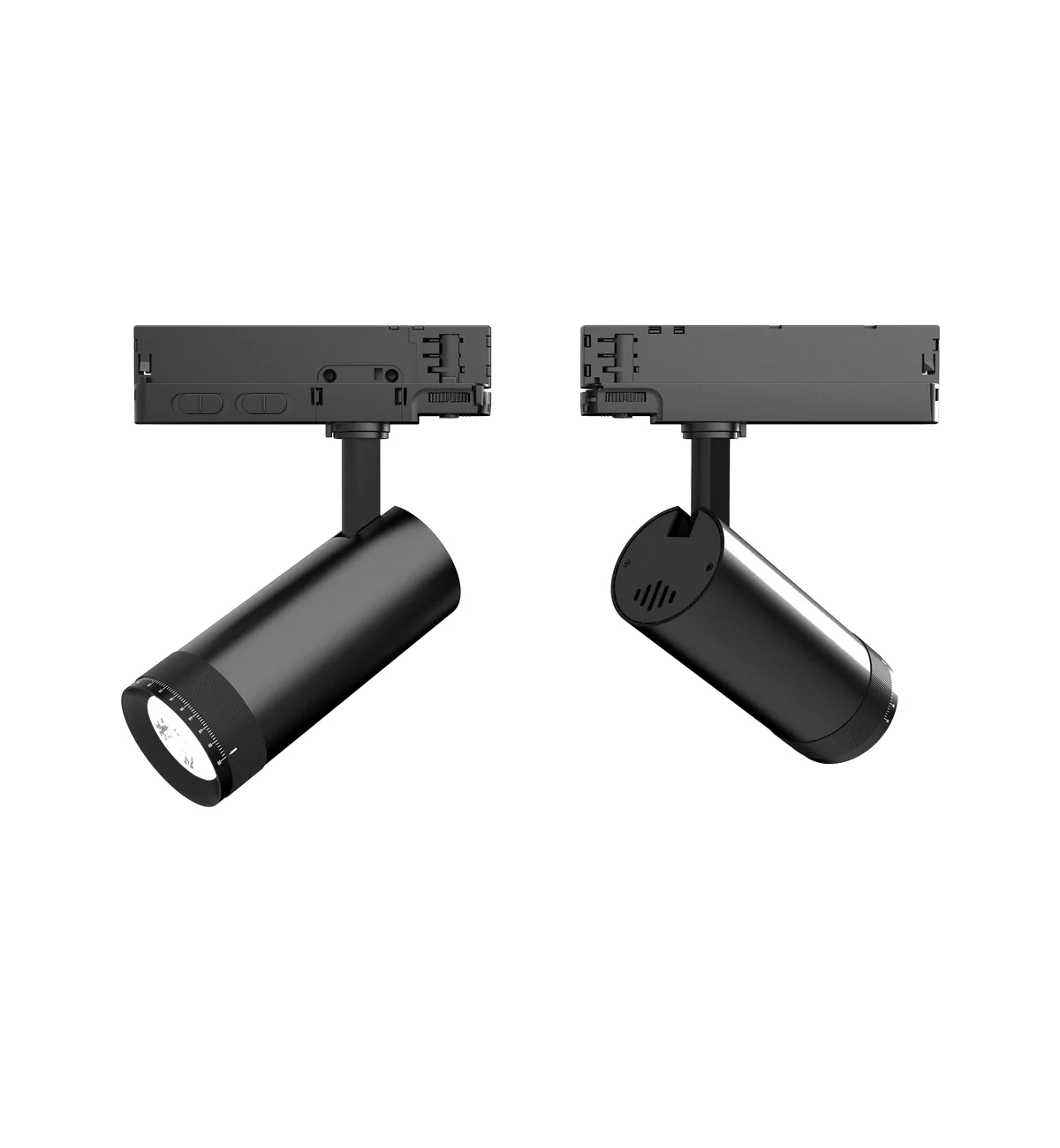

Ø65 × 150 mm
15W professional LED track light
1900 lm system output15°–55° zoomCRI90 · IP20 · Indoor
View TL05A65 →

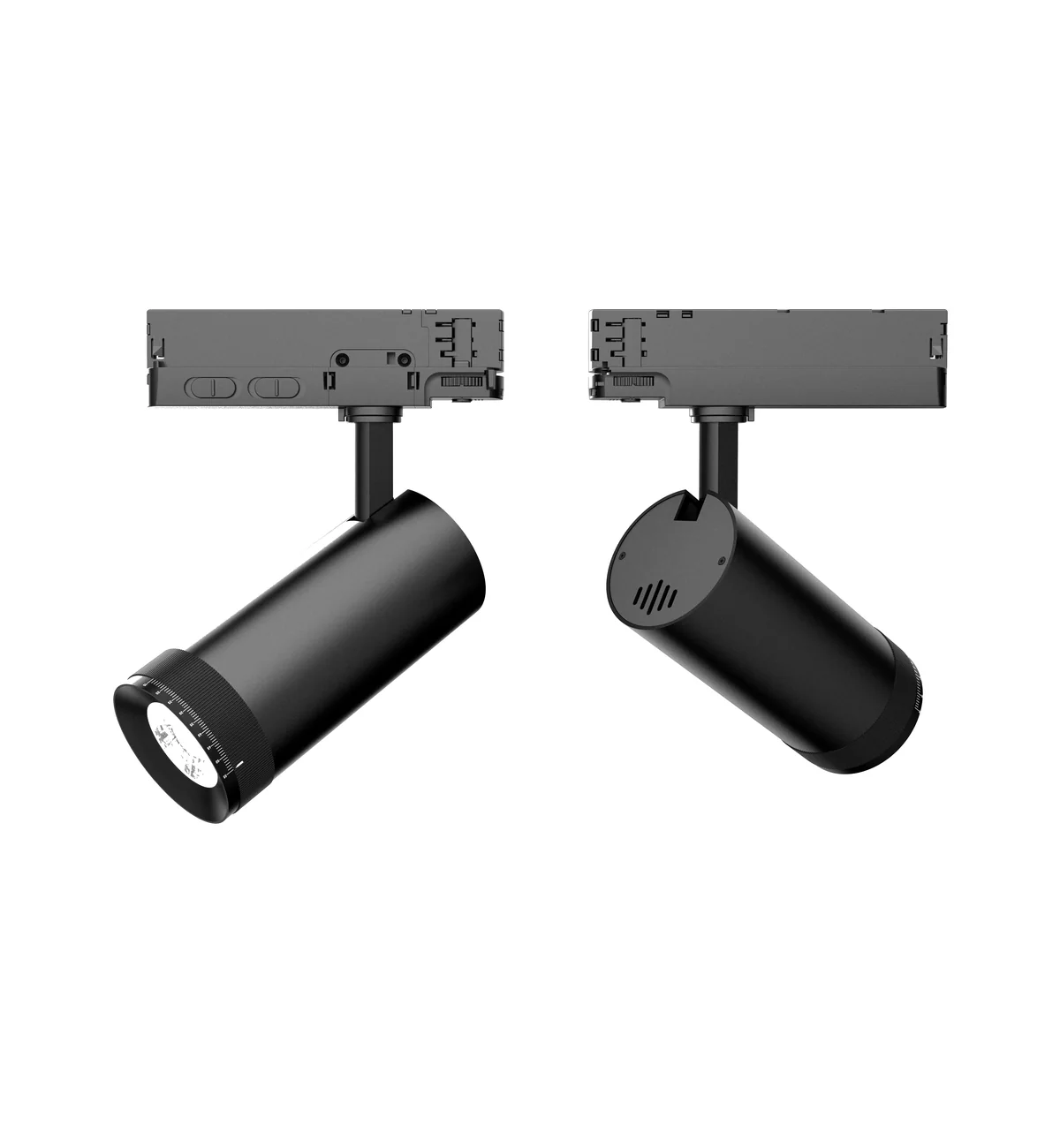

Ø75 × 160 mm
25W professional LED track light
3180 lm system output15°–55° zoomCRI90 · IP20 · Indoor
View TL05A75 →

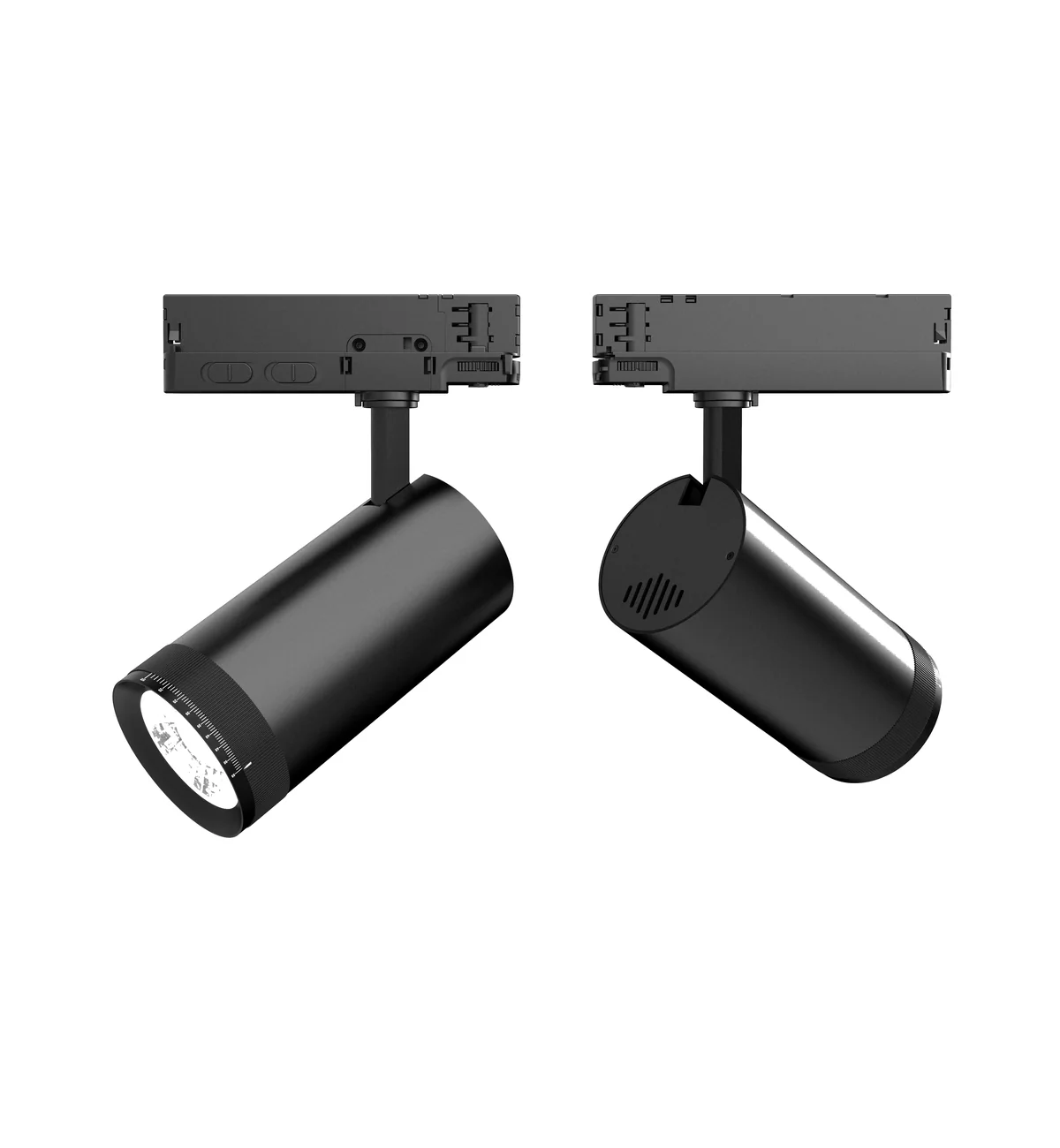

Ø85 × 170 mm
35W professional LED track light
4440 lm system output15°–55° zoomCRI90 · IP20 · Indoor
View TL05A85 →TECHNICAL DOCUMENTATION
Datasheets and IES files for every model.
Each of the sixteen models has a technical datasheet in both colour configurations, and the whole range has IES photometric files for DIALux evo and Relux — free to download, no request needed. The IES files are preliminary optical design models, not LM-79 measurements, and are labelled as such.
Open the downloads page → Jump to the files ↓
Need the installation document, or a drawing for a specific configuration? Request the technical package with the model, colour temperature, beam option and quantity and we will send the current version for your market.
Request installation package →MINIMUM ORDER QUANTITY
Track light order quantities.
Confirmed minimum order quantities for TL01–TL05 track lights and the components supplied with them. Full buyer answers are listed on the FAQ page.
Different lens or reflector combinations of one size can be mixed to reach the minimum.
Applies to rails and the coordinated track system components.
Driver boxes, connectors and similar items, following the minimum of the matching family.
Samples1–2 weeks
CustomisationTrack systems and their track lights
Custom optionsLight source, driver or warranty period
Development outputSolution proposal + cost BOM
UL / ETLNot held
