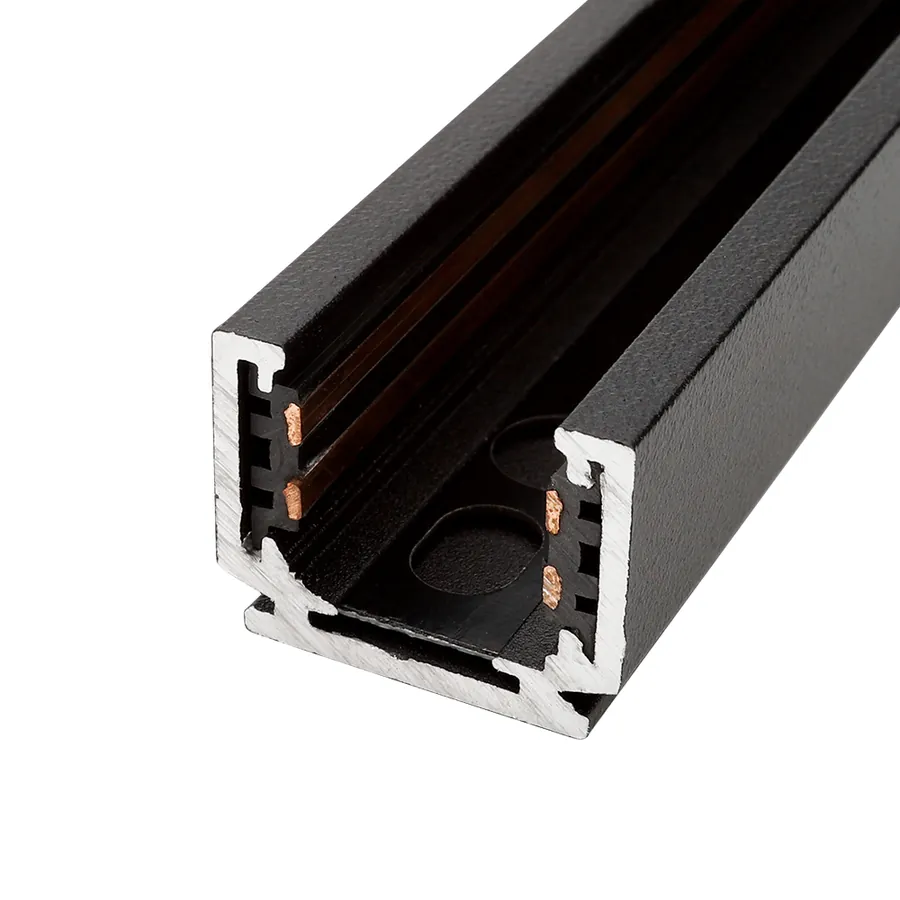

48V Rails · M0110M0110
48V magnetic rail profile for low-voltage lighting layouts, listed with a matched power, straight, flexible and L connector set.
Matched connector setAluminiumBlack / white · Confirm current options
View product details →48V RAILS · MODULES · CONNECTORS
Low-Voltage Magnetic Track Systems
Start with the 48V magnetic rail platform, then compare the spotlight, grille and flood modules that operate as one coordinated low-voltage system. Power feed, connectors, adapters and suspension parts are selected for the same rail profile. The rail, driver and module configuration are confirmed together against the current drawing.
48V RAILS FAMILY
48V Magnetic Track Rails
Low-voltage magnetic rail profiles forming the mechanical and electrical foundation of the system. Each rail is supplied with a matched connector set rather than as a stand-alone profile.
48V Rails · M0110

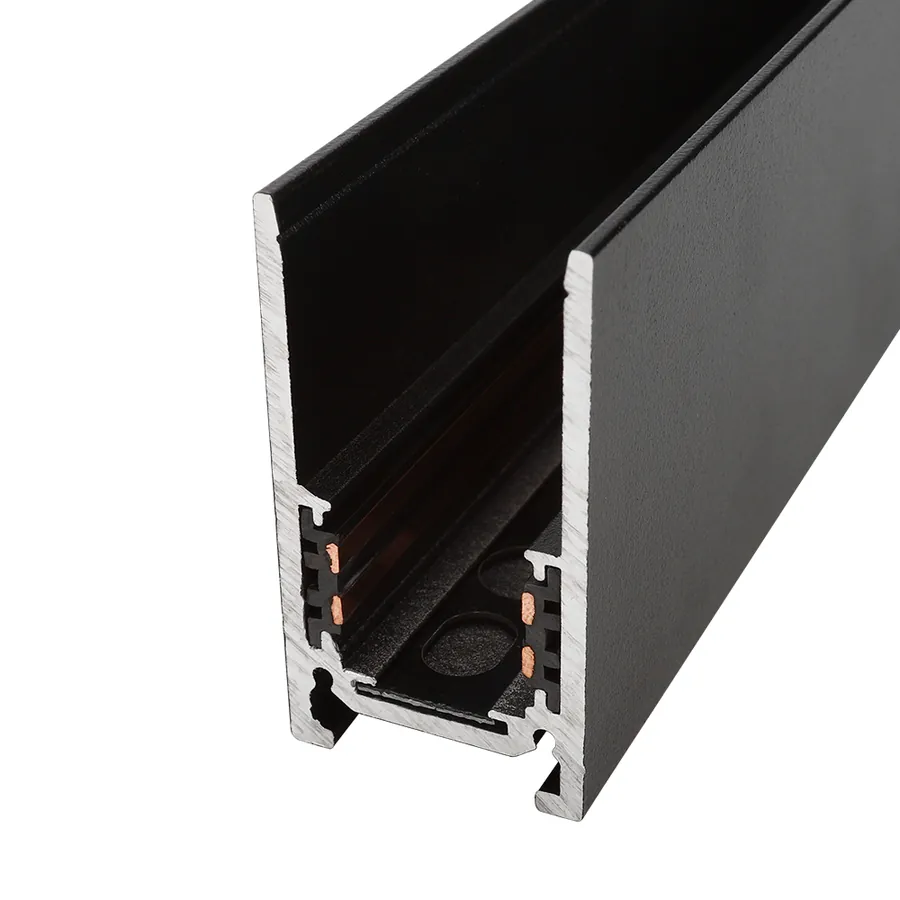

48V Rails · M0120M0120
48V magnetic rail profile for low-voltage lighting layouts, listed with a matched power, straight, flexible and L connector set.
Matched connector setAluminiumBlack / white · Confirm current options
View product details →

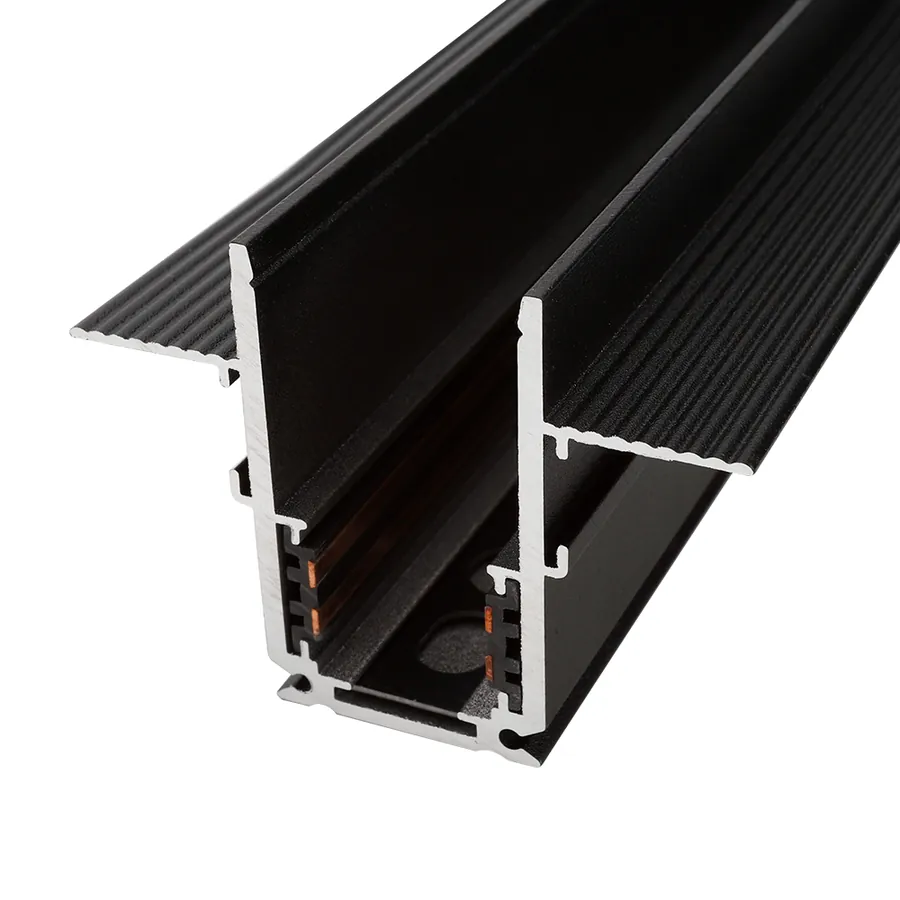

48V Rails · M0140M0140
48V magnetic rail profile for low-voltage lighting layouts, listed with a matched power, straight, flexible and L connector set.
Matched connector setAluminiumBlack / white · Confirm current options
View product details →

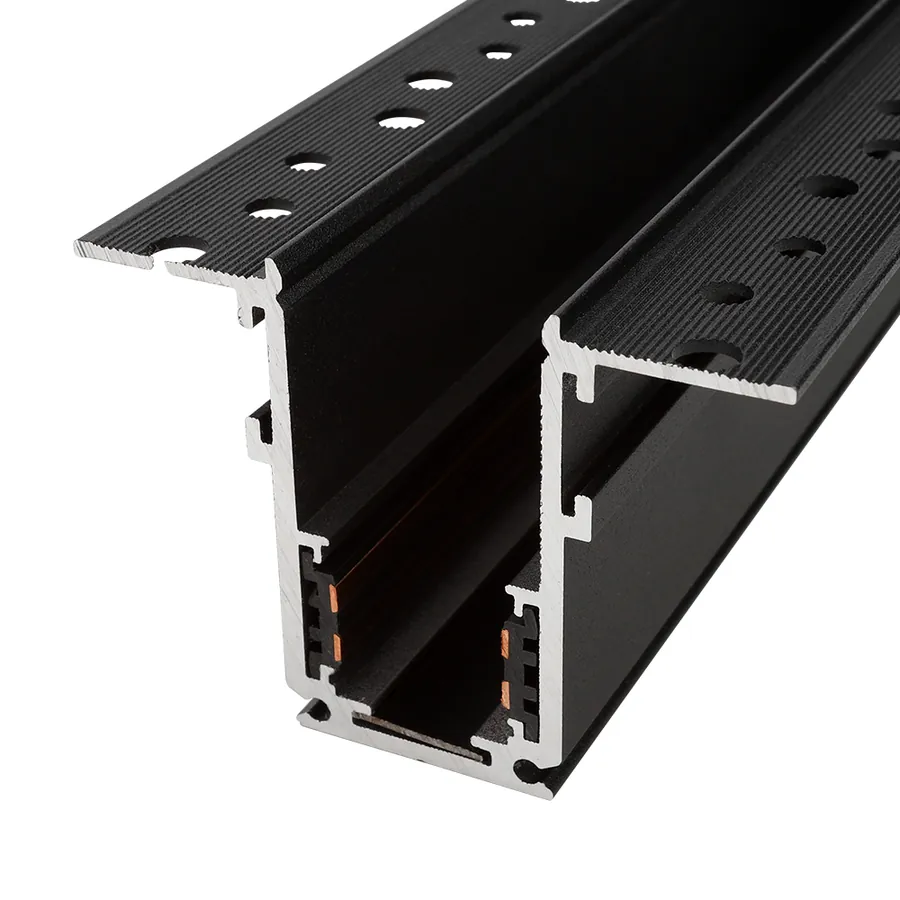

48V Rails · M0170M0170
48V magnetic rail profile for low-voltage lighting layouts, listed with a matched power, straight, flexible and L connector set.
Matched connector setAluminiumBlack / white · Confirm current options
View product details →LINEAR FLOOD FAMILY
Magnetic Linear Flood Modules
Diffused linear modules for general illumination within a compatible low-voltage magnetic system.
Linear Flood · FL330FL330
48V magnetic linear flood module for diffused general illumination, listed in three catalogue lengths.
Catalogue ref. 330 / 540 / 650 mmAluminiumBlack / white · Confirm current options
View product details →LINEAR GRILLE FAMILY
Magnetic Linear Grille Modules
Multi-cell grille modules combining a linear format with controlled accent distribution.
Linear Grille · FGL06FGL06
48V magnetic linear grille module; reference dimensions 118 × 23 × 106 mm at 6 W — confirm current configuration.
Catalogue ref. 6-cell · 6 WAluminiumBlack / white · Confirm current options
View product details →GRILLE SPOT FAMILY
Magnetic Grille Spotlights
Compact multi-cell accent modules for retail, residential and hospitality applications.
Grille Spot · GL12GL12
48V magnetic grille spotlight module for compact accent lighting, listed in 12-cell and 18-cell catalogue versions.
Catalogue ref. 220 / 330 mmAluminiumBlack / white · Confirm current options
View product details →TRACK SPOT FAMILY
Magnetic Track Spotlights
Adjustable spotlight modules that slide along a compatible magnetic rail for flexible aiming.
Track Spot · SP35SP35
48V magnetic track spotlight module; reference body 48 × 105 mm at 15 W — details on the catalogue page.
Catalogue ref. 15 WAluminiumBlack / white · Confirm current options
View product details →MATCHED RAIL COMPONENTS

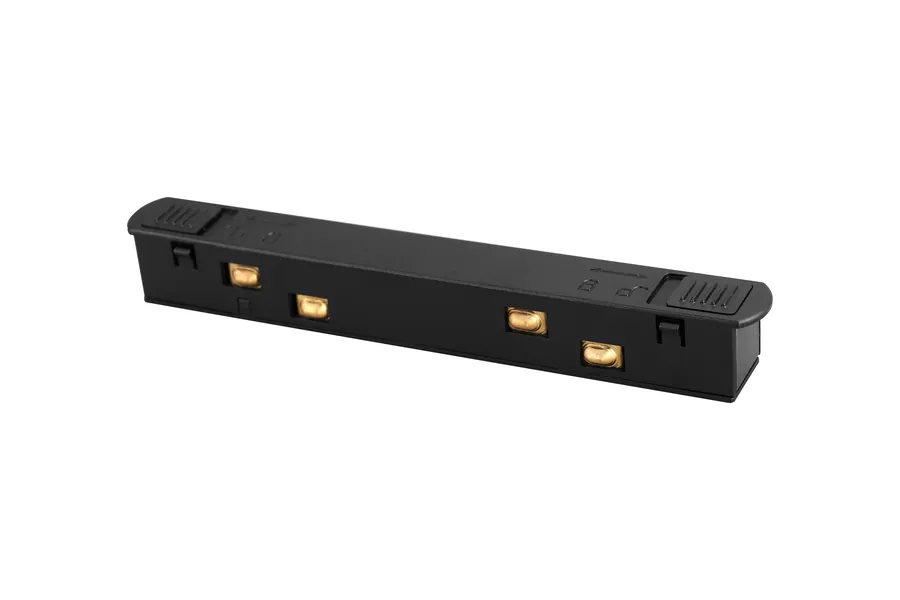

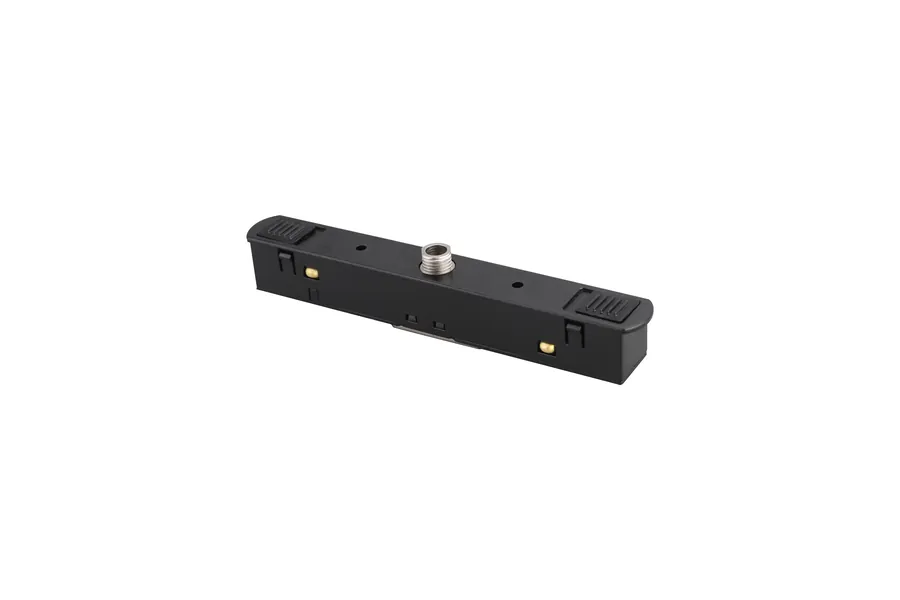

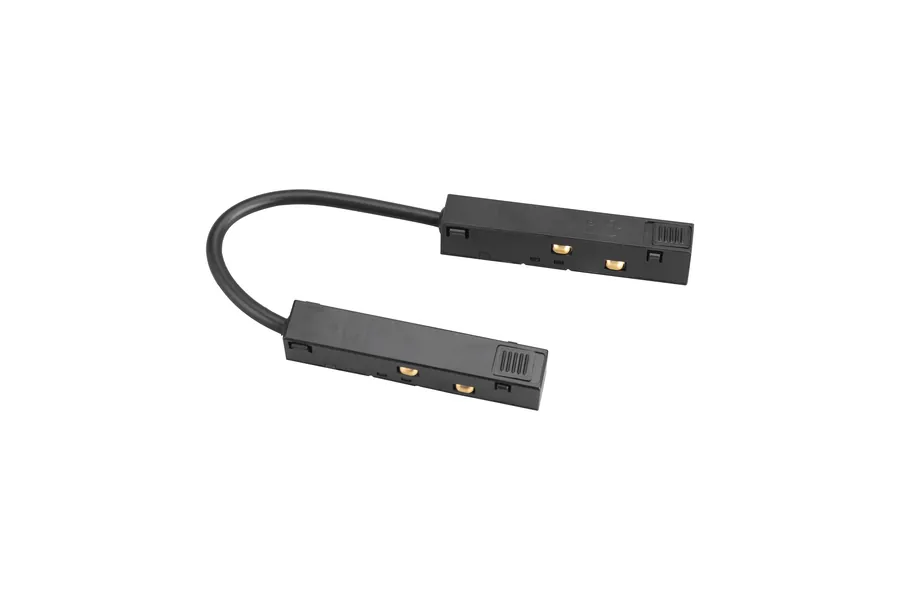

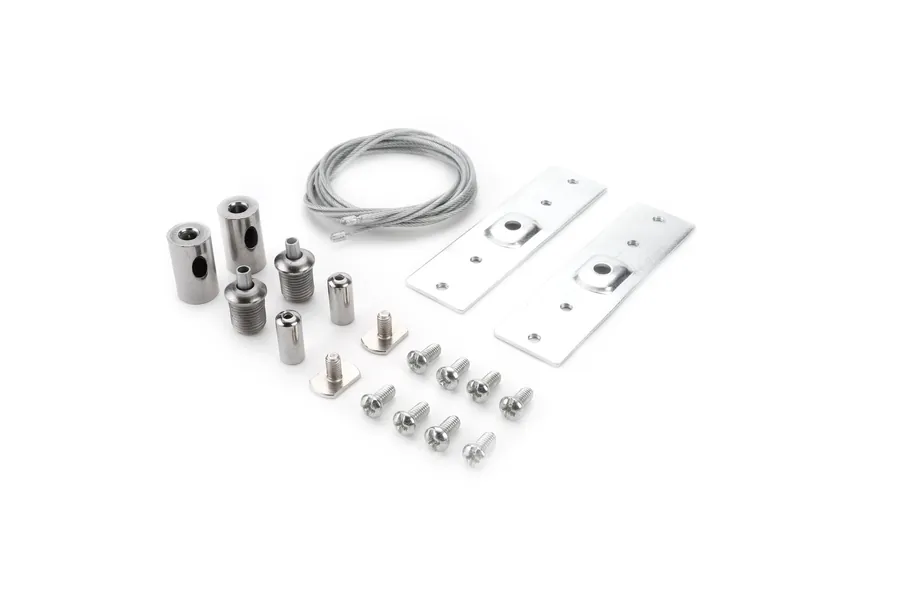

The rail is supplied as a system, not a profile.

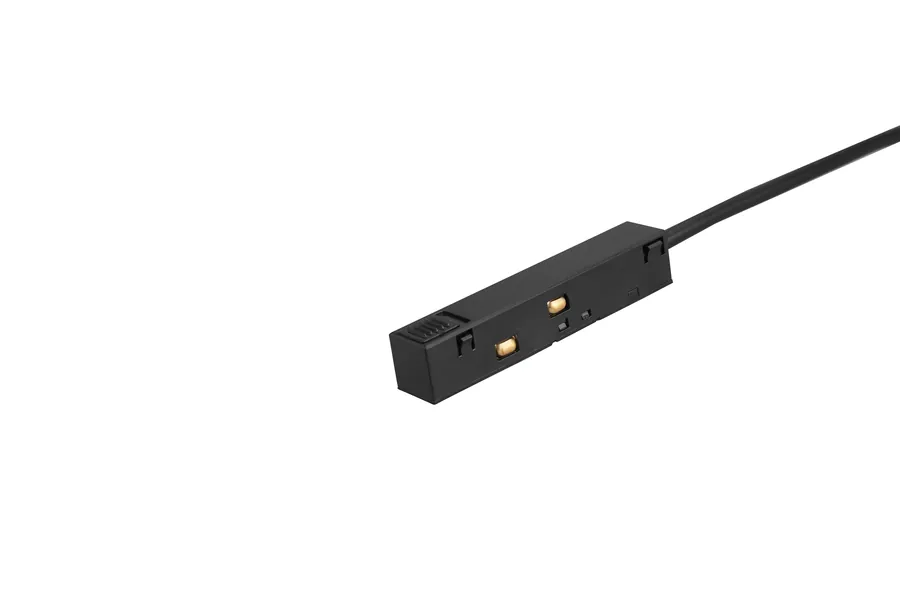

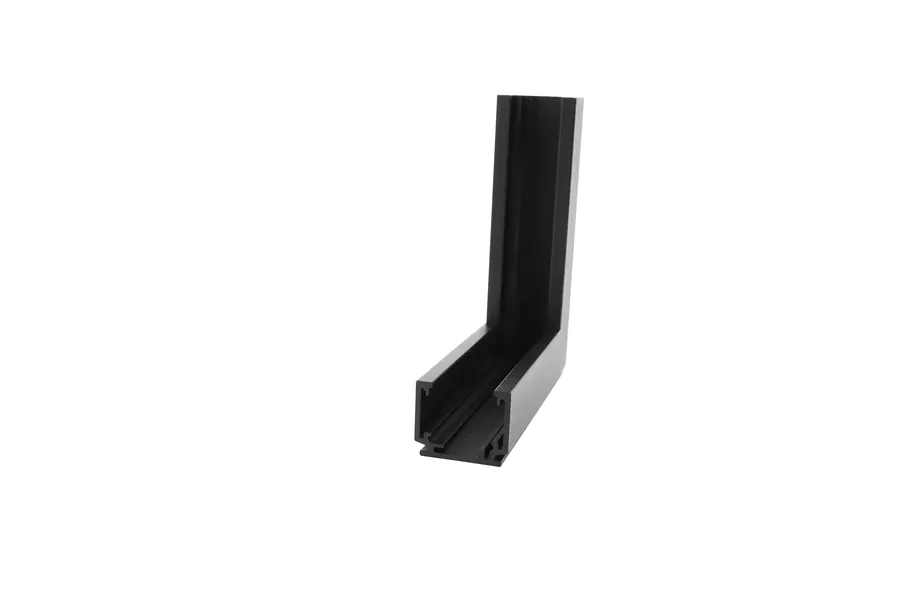

Power feed, connectors, adapters and suspension parts are selected for the same rail profile. Confirm the matching item list before combining components from different systems.
Component photography is retained from the original HAOTAI catalogue as a reference for the matched rail set. Confirm the current item list and compatibility before ordering.
HOW TO BUILD A MAGNETIC SYSTEM
Fix the rail, then the modules, then the electrical side.
A magnetic system is specified as a chain: the rail profile defines the mechanical and magnetic interface, the modules define the light distribution, and the power feed and driver define the electrical arrangement. Meet all three before ordering.
Keep one rail profile across a project where the layout is continuous, and list modules by type — spot, grille or flood — so the quotation can be checked against the reflected ceiling plan.
BUYER FAQ
Direct answers for magnetic system planning.
What specifiers and distributors ask most often when a low-voltage magnetic system is added to a project.
Which components make up a complete low-voltage magnetic system?

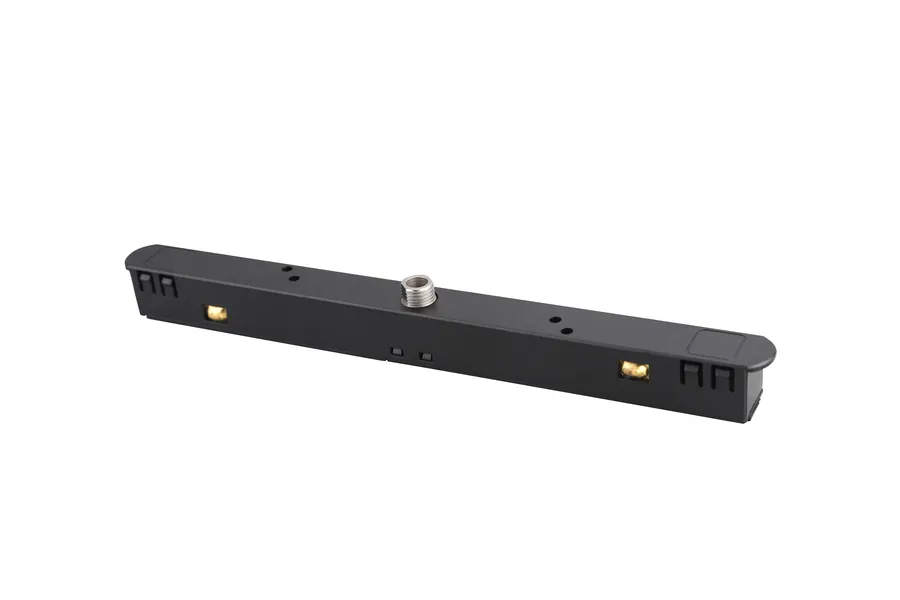

A complete system combines the 48V magnetic rail, the matched connector set, the power feed, adapters where required and the chosen spotlight, grille or flood modules. The catalogue lists the power, straight, flexible and L connectors, magnetic adapters and suspension kit as part of the rail platform.
Are magnetic modules interchangeable between different systems?
Do not assume interchangeability. Rail profile, magnetic strip position, driver arrangement and module interface must be confirmed as one system using the current drawing and an approved sample.
What is the difference between spot, grille and flood modules?
Spot modules give adjustable accent light, grille modules combine several small cells in a linear or compact format, and linear flood modules provide diffused general illumination from the same low-voltage platform.
Where is a low-voltage magnetic system normally used?
The platform suits residential, hospitality and commercial interiors where a clean ceiling line, repositionable modules and coordinated light distribution are required. Confirm the driver and rail configuration with the current drawing.
Are the catalogue figures still valid?
Figures marked “Catalogue ref.” are retained from the original HAOTAI catalogue as a planning reference only. Current rail profiles, module configurations and driver arrangements must be confirmed before quotation or order.
RELATED PRODUCT RANGES
Connect the system to the rest of the project.
Magnetic rails are frequently specified alongside track systems and housing kits. Use the linked ranges to keep adapters, drivers and accessories consistent across the whole lighting package.
Lighting track rails → Lighting housing kits → LED track lights →
Guide: magnetic connectivity → Buyer FAQ → Request a quotation →
CERTIFICATION & TEST DOCUMENTS
Documents for the rail side of the system.
Low-voltage magnetic track systems do not currently hold a separate certificate of their own. Where a magnetic system is built with rail, connector or adaptor components from our certified track platforms, the documents held for those components apply; open the certificate entries for the rail, connector and adaptor components and confirm the applicable scope with us before specifying.
CE, RoHS 2.0, TÜV, CQC and UKCA documents for track systems →
MINIMUM ORDER QUANTITY
Magnetic track system order quantities.
Confirmed minimum order quantities for 48V magnetic rails, modules and the components supplied with them. Full buyer answers are listed on the FAQ page.
Different lens or reflector combinations of one size can be mixed to reach the minimum.
Applies to rails and the coordinated track system components.
Driver boxes, connectors and similar items, following the minimum of the matching family.
Samples1–2 weeks
CustomisationTrack systems and their track lights
Custom optionsLight source, driver or warranty period
Development outputSolution proposal + cost BOM
UL / ETLNot held
